DSig Part 1: XML Digital Signature and WS-Security Integrity

This post was originally published as “DSig Part 1: XML Digital Signature and WS-Security Integrity” on the Levvel Blog.

This is the first in a three part series exploring the use of digital signatures in Web Services and APIs. Digital signatures are the primary mechanism in use today to address the Integrity and Non-Repudiation criteria for application security models described in previous blog posts on the Levvel Blog. We are going to start with the use of XML Digital Signatures in WS-Security. It’s important to understand this technology and use case before we move on to the use of digital signatures with JSON, JWTs, and OpenID Connect in APIs, which is the real focus of this series. The XML DSig specification is used to provide digital signature functionality to XML Documents. It is is used by numerous other specs such as WS-Security and SAML2. This post will describe how digital signatures work with an X509 private/public key pair. Understanding the basic idea and understanding how something like this actually works under the covers are two different things. Having a deep understanding of the underlying mechanics makes troubleshooting problems relatively straightforward.

As with so many aspects of modern information security (at least the kind that I am advocating), digital signatures on XML documents have an industry standard. This is the XML Digital Signature specification. If you are really interested in this topic, I recommend reading this spec.

The XML Digital Signature spec has evolved over time. The original can be found here; in 2008, a second edition of the spec was created to address signatures for the XML v1.1 specification. According to the second edition of the spec, “This Second Edition of XML Signature Syntax and Processing adds Canonical XML 1.1 as a required canonicalization algorithm and recommends its use for inclusive canonicalization. This version of Canonical XML enables use of xml:id and xml:base Recommendations with XML Signature and also enables other possible future attributes in the XML namespace. Additional minor changes, including the incorporation of known errata, are documented in Changes in XML Signature Syntax and Processing (Second Edition).” If you are using an XML v1.0 document — most still are in the real world — this doesn’t really change anything. If an XML v1.1 document is being used, then some minor details do change that for the most part would be abstracted away by the library generating the digital signature. The exact changes are described here. In April, 2013, the W3C released XML Signature 1.1 that expanded the set of supported cryptographic algorithms (including Elliptic Curve DSA) and additional hash algorithms. The exact details of updates can be found here. In July, 2015, the latest draft (Working Group Note) from the W3C for XML Signature 2.0 was released. This version of the spec introducing a new Reference processing model that is not backwards compatible with 1.x of the XML Digital Signature specification. Though, a Compatibility Mode exists that allows 1.x style processing to work were needed. The example I provide in this blog post is based on the original XML Digital Signature specification.

What Benefit Does a Digital Signature Provide?

An incoming message that has a digital signature attached has the following benefits over a message that does not have a digital signature:

• Know that the holder of the private key used in the digital signature generation is the one who sent the message(of course, this assumes that the private key has not been compromised). This can be used as a form of authentication.
• Guarantee that the message that has arrived has not been altered in any way (ie, it has not been tampered with).
• Non-repudiation or the idea that the sender cannot challenge the validity of the message or its origin.

Note, digital signatures do not address message encryption. Stated another way, XML Digital Signature does not address XML document encryption. SSL/TLS , XML Encryption, or another encryption mechanism is needed to address this aspect of security.

Who are the Actors?

In the most basic scenario, there are two actors that are involved: Message Sender and Message Receiver.

If a Web Service is introduced that uses a synchronous request-respond Message Exchange Pattern, the two actors become: Service Consumer and Service Provider.

Message Sender

The Message Sender generates a message with a Digital Signature and sends it to the Message Receiver.

Message Receiver

The Message Receiver receives a message that contains a digital signature and validates the digital signature. Once the signature is validated, the actor may take appropriate steps to process the message with the assurances described in the “What Assurances Does a Digital Signature Provide” Section above.

Service Consumer

The Service Consumer creates a request message that contains a Digital Signature and receives a response that potentially contains a Digital Signature. It isn’t strictly required that the response have a Digital Signature. For that matter, it isn’t strictly required that the request have a Digital Signature if the benefits of one are not needed.

We are ultimately building up to the use of XML Digital Signature in WS-Security; however, the spec can be used on any properly valid XML document. So, where we use the term message in this tutorial, we are simply referring to any valid XML document.

Service Provider

The Service Provider receives a request message that contains a Digital Signature, validates the signature, performs processing, generates a response message, adds a Digital Signature to the response message, and sends the response message to the Service Consumer. If the response doesn’t need a digital signature, once again, it doesn’t have to be added.

How it Works

Rather than writing out all these details in words, I decided to put together flow charts showing what happens during signature generation and signature validation.

Note: I am assuming that an enveloped digital signature is being used (ie, the block is embedded inside the original XML document). We are making this assumption because this is how WS-Security Integrity works.

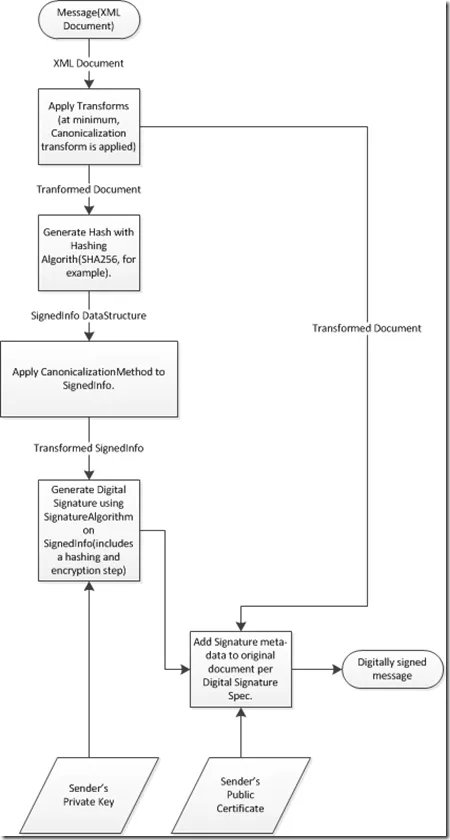

Digital Signature Generation

The following workflow describes how the Message Sender’s run-time generates a digital signature on a message.

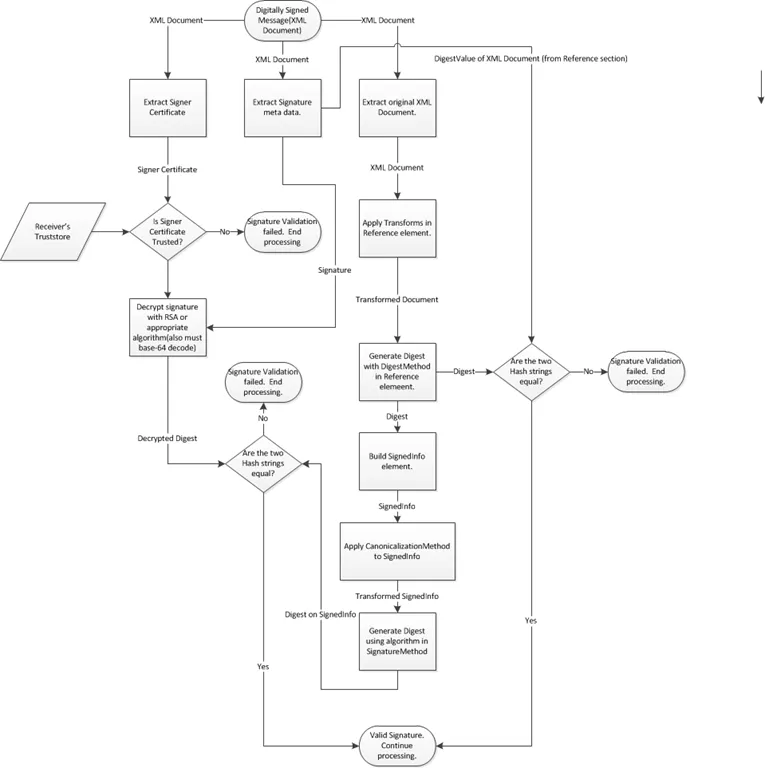

Digital Signature Validation

The following workflow describes how the Message Receiver’s runtime validates a Digital Signature.

Some additional points:

• The Message Receiver must check its local truststore to ensure that only valid messages from trusted senders are validated. Otherwise, any Sender that generates a correct signature regardless of what signer certificate was used will be allowed.
• The public signer certificate should be embedded in the message. This will allow the Message Receiver to work with messages from multiple senders easily.
• Put Issuing Certificates in the Truststore instead of individual signer certificates. An additional Subject DN check or other check will be needed to ensure only desired signer certificates are accepted.
• Use of a Digital Signature is usually accompanied by a Timestamp.
• The Message Receiver will generally dictate whether a Digital Signature is required. But, this is not always the case.
• The Digital Signature validation configuration of the Message Receiver side will generally be configured to expect certain parameters that will be described in a WS-SecurityPolicy document or other SLA document between the Message Sender and Message Receiver.

An Example

The following XML Digital Signature is from the XML Digital Signature spec. This is called a detached signature because the signature is separate from the document that was signed; it is a little different than the enveloping method that was described above which WS-Security Integrity uses. This is the digital signature over the spec document in HTML4 format.

[s01] <Signature Id=”MyFirstSignature” xmlns=”http://www.w3.org/2000/09/xmldsig#">

[s02]

[s03] <CanonicalizationMethod Algorithm=”http://www.w3.org/2006/12/xml-c14n11"/>

[s04] <SignatureMethod Algorithm=”http://www.w3.org/2000/09/xmldsig#dsa-sha1"/>

[s05] <Reference URI=”http://www.w3.org/TR/2000/REC-xhtml1-20000126/">

[s06]

[s07] <Transform Algorithm=”http://www.w3.org/2006/12/xml-c14n11"/> [s08]

[s09] <DigestMethod Algorithm=”http://www.w3.org/2000/09/xmldsig#sha1"/>

[s10] dGhpcyBpcyBub3QgYSBzaWduYXR1cmUK…/DigestValue> [s11]

[s12]

[s13] …

[s14]

[s15a]

[s15b]

[s15c]

…

………

[s15d]

[s15e]

[s16]

[s17]

Notice, that we are dealing with a element. This is the structure that contains an XML Digital Signature. It is defined by the XML Digital Signature specification. It defines the default namespace to be http://www.w3.org/2000/09/xmldsig# (again, defined by the XML Digital Signature specification).

The first child element of is the element. The element is a wrapper for the signature’s meta-data (canonicalization method, transform list, encryption algorithm, hashing algorithm, etc) and signed data.

The first child element of is . This element “is a required element that specifies the canonicalization algorithm applied to the SignedInfo element prior to performing signature calculations” per the XML DSig Spec.

The second element of the is . This defines the algorithm that is used to produce the digital signature. It defines the hashing function, encryption function, padding, etc. There are multiple signature algorithms that could be used. At this point, something like RSA-SHA256 is common.

The third element of the element is . This can occur one or more times. This element “specifies a digest algorithm and digest value, and optionally an identifier of the object being signed, the type of the object, and/or a list of transforms to be applied prior to digesting” per the spec. If a reference to the document (or sub-document) being signed isn’t included, it may be difficult to troubleshoot issues during validation or implement validation logic that doesn’t require complex configuration parameters.

The first child element of the element is the element. This contains a series of transforms that should be applied to the data being signed. There is always at least one transform element applied (the C14N transform). This C14N transform is applied to the document/element being hashed and is a distinct step from the canonicalization algorithm mentioned above. Picture this as a series of Transform nodes each applying an XSLT stylesheet in a WebSphere DataPower or Apigee Edge rule.

This example contains a single element that describes the C14N algorithm that was applied to the data (not to be confused with the CanonicalizationMethod given above).

The next child element of the element is the . This defines the hashing algorithm that is used (SHA1 in this case) on the data described by the URI property. SHA1 is being retired due to known weaknesses and potential vulnerabilities that one day soon will be real-world exploits; the SHA2 family of hashing algorithms should be used in its place (SHA224, SHA256, SHA384, SHA512). The SHA2 generation of algorithms is based off United States Federal Information Processing Standards 180–4 (FIPS PUB 180–4).

The element gives the calculated hash value of the input data (using the algorithm specified by DigestMethod). This is sometimes referred to as a message digest.

The next child element of the element is . This is the actual base-64 encoded, digital signature of the element (after the canonicalization method described by CanonicalizationMethod is applied).

The next child element of the element is the element. The element contains information about the key that was used to produce the digital signature. This example does not contain a complete block. There are several possible permutations of the data that is given here. An example is given below of the use of XML Digital Signatures with WS-Security Integrity. We will use the SOAP Web Service that was introduced in this DataPower tutorial. The typical SOAP Response for this Web Service will look something like this:

<soapenv:Envelope xmlns:ws=”http://ws.rcbj.com/“ xmlns:soapenv=”http://schemas.xmlsoap.org/soap/envelope/“>

soapenv:Body

ws:sumResponse

9

</ws:sumResponse>

</soapenv:Body>

</soapenv:Envelope>

If we add a digital signature and timestamp using WS-Security to this response, the message will look something like:

<soapenv:Envelope xmlns:soapenv=”http://schemas.xmlsoap.org/soap/envelope/” xmlns:ws=”http://ws.rcbj.com/">

soapenv:Header

<wsse:Security
xmlns:wsse=”http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd” soapenv:mustUnderstand=”1”>
<wsu:Timestamp
xmlns:wsu=”http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd” wsu:Id=”Timestamp-c1414e29–208f-4e5a-b0b7-f4e84ce870b9”>
wsu:Created2012–12–31T23:50:43Z</wsu:Created>
wsu:Expires2012–12–31T23:55:43Z</wsu:Expires>
</wsu:Timestamp>
<wsse:BinarySecurityToken
xmlns:wsu=”http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd”
wsu:Id=”SecurityToken-49cac4a4-b108–49eb-af80–7226774dd3e4”
EncodingType=”http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-soap-message-security-1.0#Base64Binary”
ValueType=”http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-x509-token-profile-1.0#X509v3">
MIIDOjCCAqOgAwIBAgIEdOq6LjANBgkqhkiG9w0BAQUFADBxMQswCQYDVQQGEwJVUzELMAkGA1UECBMCT1IxETAPBgNVBAcTCFBvcnRsYW5kMR0wGwYDVQQKExRSQ0JKIENvbnN1bHRpbmcsIExMQzELMAkGA1UECxMCSVQxFjAUBgNVBAMTDUR1bW15RFNpZ0NlcnQwHhcNMTIxMjMxMjM0NDQ3WhcNMjIxMjI5MjM0NDQ3WjBxMQswCQYDVQQGEwJVUzELMAkGA1UECBMCT1IxETAPBgNVBAcTCFBvcnRsYW5kMR0wGwYDVQQKExRSQ0JKIENvbnN1bHRpbmcsIExMQzELMAkGA1UECxMCSVQxFjAUBgNVBAMTDUR1bW15RFNpZ0NlcnQwgZ8wDQYJKoZIhvcNAQEBBQADgY0AMIGJAoGBALd4DQWC6PtcA9NXzpBvcv9jfDXHBpr9k9DWSe5qI5N8HPZ+8ArAyRURz9+cEz7yWcjL7WY0KzLrBrx9Xwn0Ss2Y+xyPfvVKCxVTkPF5kSLfwIWl3oL1bAVyMNyV1aB4GL7tWAHEe8E7y6djKTP2EZwRyUWHHjyKycqDxKADaKWXAgMBAAGjgd4wgdswDAYDVR0TBAUwAwEB/zAdBgNVHQ4EFgQUx+xJOYF+4DagDezOpMX5lwcCsxEwgZ4GA1UdIwSBljCBk4AUx+xJOYF+4DagDezOpMX5lwcCsxGhdaRzMHExCzAJBgNVBAYTAlVTMQswCQYDVQQIEwJPUjERMA8GA1UEBxMIUG9ydGxhbmQxHTAbBgNVBAoTFFJDQkogQ29uc3VsdGluZywgTExDMQswCQYDVQQLEwJJVDEWMBQGA1UEAxMNRHVtbXlEU2lnQ2VydIIEdOq6LjALBgNVHQ8EBAMCArwwDQYJKoZIhvcNAQEFBQADgYEAnPAuf0VmKv8gIxmHbE5D6ljyAHXXVpah6JWonJelmsrXMrkQygudnOEWYI4VjbMFWJ0Oatnx1krYv3M8Xs25xviOTe+jjALLMiq6T/BBU7iz+/WN9UZPJnd12DwrLE5+bXMvdRHlwVkU1krnbuhaIyZl2qlcCsrOqCYRfEqXqe8=
</wsse:BinarySecurityToken>
<Signature xmlns=”http://www.w3.org/2000/09/xmldsig#">

<CanonicalizationMethod Algorithm=”http://www.w3.org/2001/10/xml-exc-c14n#"/>
<SignatureMethod Algorithm=”http://www.w3.org/2000/09/xmldsig#rsa-sha1"/>
<Reference URI=”#Timestamp-c1414e29–208f-4e5a-b0b7-f4e84ce870b9”>

<Transform Algorithm=”http://www.w3.org/2001/10/xml-exc-c14n#"/>

<DigestMethod Algorithm=”http://www.w3.org/2000/09/xmldsig#sha1"/>
bj8IHKuebTNIAmBbEp+OMzcC2QA=

<Reference URI=”#Body-c4080b95–9986–49bf-abd0–3634de9b2b26”>

<Transform Algorithm=”http://www.w3.org/2001/10/xml-exc-c14n#"/>

<DigestMethod Algorithm=”http://www.w3.org/2000/09/xmldsig#sha1"/>
c2n1AgOTwSnCPawsZuOElayfki4=


j/qnJQwO4x4zziS4MsdI2Z68yRDmb7FLshu7KmXUwKPQ7j10WuZ2sw+OdarngvrTBsoMmqwF+bIqJ18amvJPnH2FwV7ROHcIvUgxUN461JEFM3aYvwOFd7XnX4oBkHrEf0VhsZnUXrGLHB99H7myWYt6r8d0UA+gXHgiC+laK48=

<wsse:SecurityTokenReference xmlns=””>
<wsse:Reference URI=”#SecurityToken-49cac4a4-b108–49eb-af80–7226774dd3e4” ValueType=”http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-x509-token-profile-1.0#X509v3"/>
</wsse:SecurityTokenReference>


</wsse:Security>
</soapenv:Header>
<soapenv:Body
xmlns:wsu=”http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd” wsu:Id=”Body-c4080b95–9986–49bf-abd0–3634de9b2b26”>
ws:sumResponse
9
</ws:sumResponse>
</soapenv:Body>
</soapenv:Envelope>

The first thing to notice between the original SOAP Message and Message with the timestamp and digital signature added is the size increase. The original message is 317 bytes in length; the message with digital signature and timestamp is 4358 bytes in length. That is almost 14X larger. Of course, in the real world, SOAP responses for services doing real work will probably be longer than 317 bytes. Nevertheless, criticism surrounding WS-Security having bloated messages and overhead is not unfounded. Of course, any effective security solution that satisfies the same requirements will have similar characteristics.

WS-Security places all security meta-data in a SOAP Header called . In this example, with the namespace, the SOAP Security header is called wsse:Security. Notice that the soapenv:MustUnderstand property is set to ‘1’. This means that any SOAP Actor that encounters this message (Service Consumer and Service Provider) must be able to understand the header. The wsse namespace is defined as xmlns:wsse=”http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd” per the WS-Security 1.0 spec. The DataPower Sign Action that generated this signature was configured to follow Strict WS-Security Security Header Layout; so, order of elements matters.

<wsu:Timestamp wsu:Id=”.” xmlns:wsu=”.”>
wsu:Created2012–12–31T23:50:43Z</wsu:Created>
wsu:Expires2012–12–31T23:55:43Z</wsu:Expires>
</wsu:Timestamp>

The first child element of the element is a element. The timestamp defines the creation time of the service and how long the message is considered valid. Notice that an Id property is defined that gives the element a unique name. This will be used later in the element to reference the element (the timestamp is included in the digital signature).

<wsse:BinarySecurityToken wsu:Id=”.” EncodingType=”.” xmlns:wsu=””>

MIIDOjCCAqOgAwIBAgIEdOq6L…

</wsse:BinarySecurityToken>

The next child element of the element is the element. This contains the base-64 encoded X509v3 public signer certificate that corresponds to the private key that was used to generate the digital signature. If we add ‘\n’ characters every 64 characters and add the Header and Footer lines, you will have a PEM file. Check out this post explaining how to accomplish this conversion. I always recommend including the public signer certificate in the message(Direct Reference). Otherwise, it can become difficult to identify which key was used to generate the digital signature; this will limit how generic the processing logic/configuration can be for validating the signature on the Message Receiver.

The last child element of the element is the element that contains the digital signature. Refer to the example and subsequent description above. The notable differences are:

• There are now two elements in element. Notice that one points at the message body of the SOAP Message and the other points at the timestamp that was described previously.
• The other difference is the element contains a that points at the element described above.

More Information

I have summarized the SOA & SOAP security-related references I used in this blog post here.

For additional information about Digital Signatures check out Demystifying WS-Security book (amazon link).
